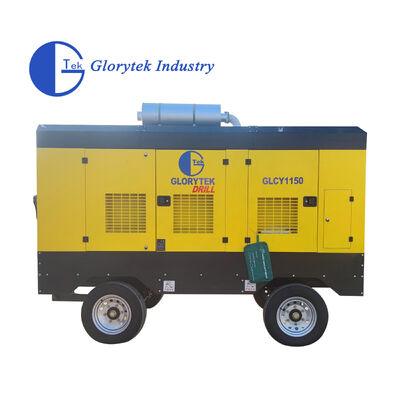

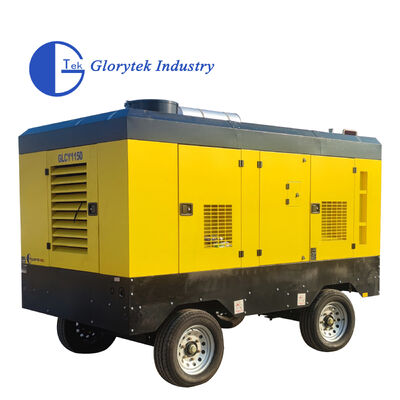

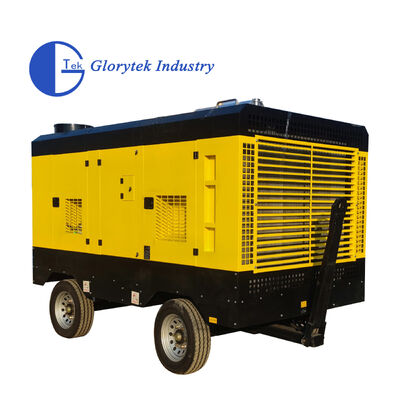

GLORYTEK Portable Diesel Engine Driven Air Compressor with 31m3/min Air Output and 25bar Pressure for Industrial Use

1SET
MOQ
negotiable
prezzo
GLORYTEK Portable Diesel Engine Driven Air Compressor with 31m3/min Air Output and 25bar Pressure for Industrial Use
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Nome: Compressore d'aria con motore diesel GLORYTEK portatile per uso industriale
Parola chiave: Compressore d'aria con motore diesel per strumenti di perforazione
Modello: GLCY1150
Pressione atmosferica: 25bar
Uscita dell'aria: 31 m3/min
Energia: Motore diesel
Evidenziare:

31m3/min Air Output Diesel Engine Driven Air Compressor

,

25bar Air Pressure Portable Air Compressor

,

Diesel Engine Powered Industrial Air Compressor
Informazioni di base
Luogo di origine: Cina
Marca: GLORYTEK
Certificazione: CE
Numero di modello: GLCY1150
Termini di pagamento e spedizione
Imballaggi particolari: Imballaggio standard per l'esportazione
Tempi di consegna: 20 giorni
Termini di pagamento: T/T,L/C,Western Union
Capacità di alimentazione: 20 set/mese
Descrizione di prodotto
GLORYTEK Diesel Engine Driven Air Compressor
GLCY series diesel-driven screw air compressors are professionally engineered for industrial drilling applications. These portable units are powered by diesel engines and designed to operate efficiently in remote locations without electrical power supply.
Key Features
  • Diesel engine powered for field operation without electricity
  • Two-stage compression for optimal performance
  • Portable design with towing capability
  • Drives rock drills and pneumatic tools
  • Suitable for drilling and construction applications
Technical Specifications - Diesel Driven Compressors
Models LUY025-7 to LUY118-7
Model Free Air Delivery (m³/min) Working Pressure (bar) Noise Level (dB) Weight (kg) Engine Power (kW/HP)
LUY025-72.57<7055619.4/26
LUY036-73.67<8065222/30
LUY050-75.07<7068832/43
LUY055-75.5777±396036/49
LUY079-77.9778±3150060/80
LUY085-148.51478±3168097/130
Models LUY120-14 to LUY330-21
Model Free Air Delivery (m³/min) Working Pressure (bar) Noise Level (dB) Weight (kg) Engine Power (kW/HP)
LUY120-14121478±33100132/180
LUY130-17131779±33500153/205
LUY170-13171579±33500179/240
LUY250-12251279±34600232/311
LUY270-10271079±35100194/260
LUY330-21332174±35750354/475
GLORYTEK 26/20 & 33/25 High-Pressure Compressors
GLORYTEK Portable Diesel Engine Driven Air Compressor with 31m3/min Air Output and 25bar Pressure for Industrial Use 0 GLORYTEK Portable Diesel Engine Driven Air Compressor with 31m3/min Air Output and 25bar Pressure for Industrial Use 1
Specification Model 26/20 Model 33/25
Nominal Volume Flow (m³/min)2633
Rated Discharge Pressure (MPa)2.02.5
Unit Weight (kg)45006800
Dimensions (mm)4600×1950×28504700×2100×2500
Diesel Engine Power (HP)360550
Fuel Tank Capacity (L)400600
Electric Driven Air Compressors
Standard Models
Model Free Air Delivery (m³/min) Pressure (bar) Motor Power (kW) Weight (kg)
LUY100D-7107551800
LUY110D-101110751920
LUY130D-7137751920
LUY165D-716.57903195
LUY203D-720.371103220
High-Capacity Models
Model Free Air Delivery (m³/min) Pressure (bar) Motor Power (kW) Weight (kg)
LUY210D-1021101324360
LUY230D-8.5238.51324360
LUY250D-1025101604500
LUY290D-2129212504900
Manufacturer Information
GLORYTEK Portable Diesel Engine Driven Air Compressor with 31m3/min Air Output and 25bar Pressure for Industrial Use 2
Glorytek Industry (Beijing) Co., Ltd.
Glorytek Industry is an integrated corporation with over 20 years of experience in manufacturing and exporting high-quality drilling equipment and components. Supported by an experienced R&D team and engineers, we successfully complete projects according to client specifications.
Facility Overview
  • Factory area: 250,000 square meters
  • Construction area: 150,000 square meters
  • Over 200 sets of machinery including CNC processing centers
  • More than 600 employees
Product Range
Surface mining drilling rigs, water well drilling rigs, core drilling rigs, HDD drilling rigs, foundation drilling rigs, downhole motors, air compressors, DTH hammers, hammer bits, tricone bits, PDC drill bits, button bits, drag bits, drill pipes, shank adaptors, core bits, wireline coring tools, rock reamers, and stabilizers.
Shipping & Delivery
  • Air compressors can be loaded in 20ft or 40ft containers
  • Standard delivery time: 20 days after payment confirmation
  • Shipping by sea
