High-Performance Bw850/5 Mud Pump for Borehole Drilling Applications

1 pz
MOQ
negotiable
prezzo
High-Performance Bw850/5 Mud Pump for Borehole Drilling Applications
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Nome: Pompa per fanghi di perforazione a pistone a doppia azione orizzontale a doppio cilindro BW850/5 per
Parola chiave: BW850/5 Pompa per fanghi di perforazione a doppio cilindro
Numero di modello: BW850/5
Portata: 850L/min
Dimensione complessiva (L×W×H) (millimetro): 3018×1120×2050
peso (kg): 3100
Informazioni di base
Luogo di origine: Cina
Marca: GLORYTEK
Numero di modello: BW850/5
Termini di pagamento e spedizione
Imballaggi particolari: Imballaggio standard per l'esportazione
Tempi di consegna: 10-15 giorni
Termini di pagamento: T/T, L/C, Western Union, MoneyGram
Capacità di alimentazione: 100 set/mese
Descrizione di prodotto

BW850/5 Mud Pump



Description



BW850/5 Double-Cylinder Drilling Mud Pump belongs to the BW series mud pump. We can supply below types: BW90/3, BW100/5, BW120/3, BW150/1.5, BW150/3.5, BW160/10, BW200/4, BW240/10, BW250, BW320, BW150/13, BW400/10, BW450/5, BW500/10, BW600/10, BW750,
BW850/2, BW850/5, BW1200/7 Etc.

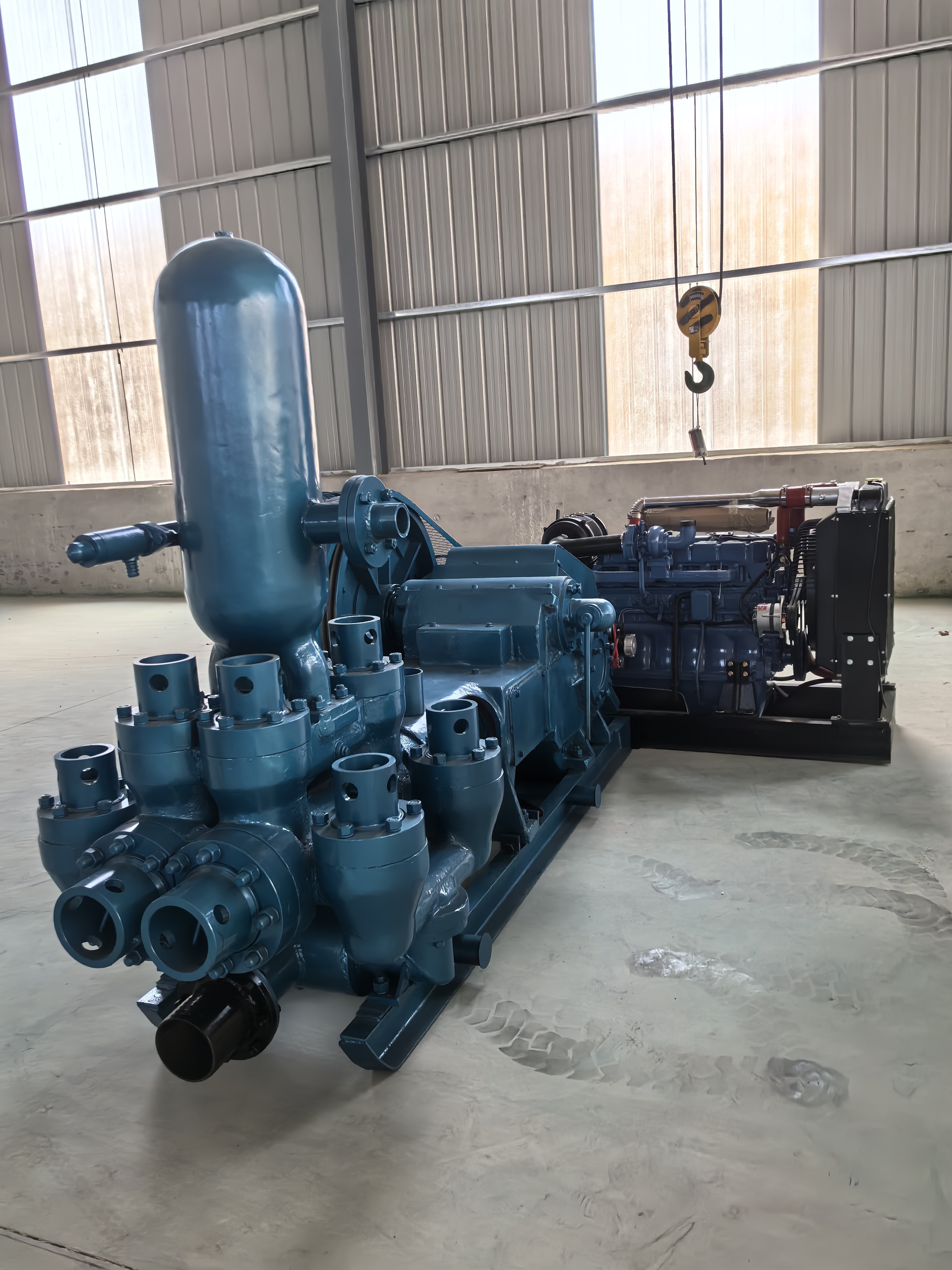

High-Performance Bw850/5 Mud Pump for Borehole Drilling Applications 0

Application:

BW850/5 Double-Cylinder Drilling Mud Pump is widely used to press flushing fluid into the hole during geological drilling and is used together with large-diameter drilling rigs with a depth of 200 to 600 meters, which can improve the drilling rig efficiency and drilling quality.



Technical Parameter
Type:BW850/5 Horizontal double cylinder reciprocating double action piston pump
Cylinder Liner Dia (mm) 140 130 95
Piston Stroke (mm) 260
Theoretical Flow Rate (L/min) 850 600 350
Rated Pressure (MPa) 5 6 8
Strokes Per Minute 66
Input Power (kW) 90
Overall Dimension(L×W×H) (mm) 3018×1120×2050
Weight (kg) 3100

Structure Features



1.Horizontal double cylinder & three cylinder,
single-acting&double-acting reciprocating piston pump.
2.Simple and compact structure, light weight, long service life of wearing parts, easy
operation.
3.Extending service life of pump greatly by using bi-metal liner.


Packing



Packing: Standard Exporting Packing for BW850/2 Double-Cylinder Drilling Mud Pump
Delivery: Normally 10-15 days after your advanced payment.



Company Profile

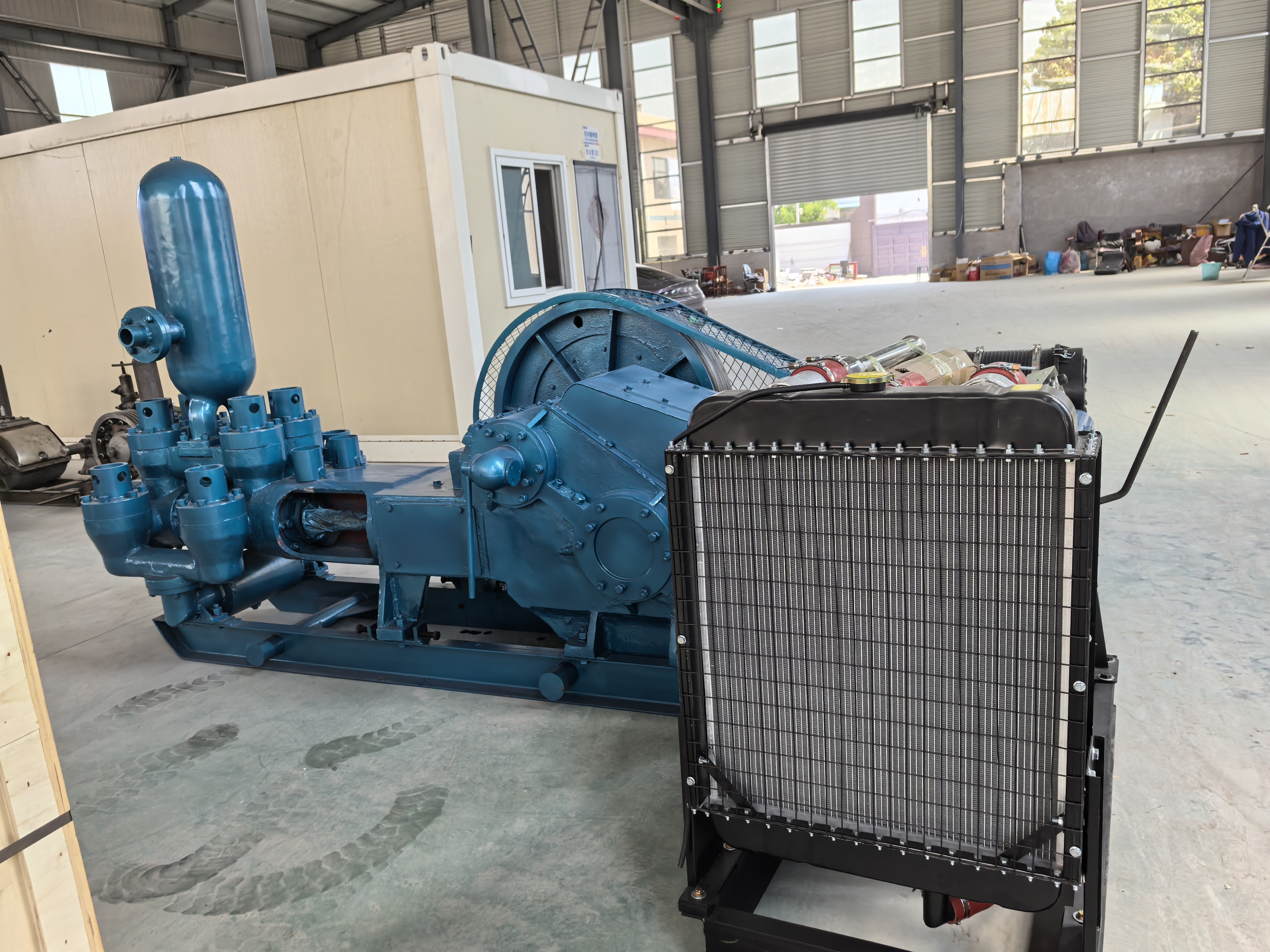

High-Performance Bw850/5 Mud Pump for Borehole Drilling Applications 1

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.



Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.



We believes that good quality can give us survival, thus we only provide you top products.All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.



All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment.Every machine will be strictly examined before delivery.

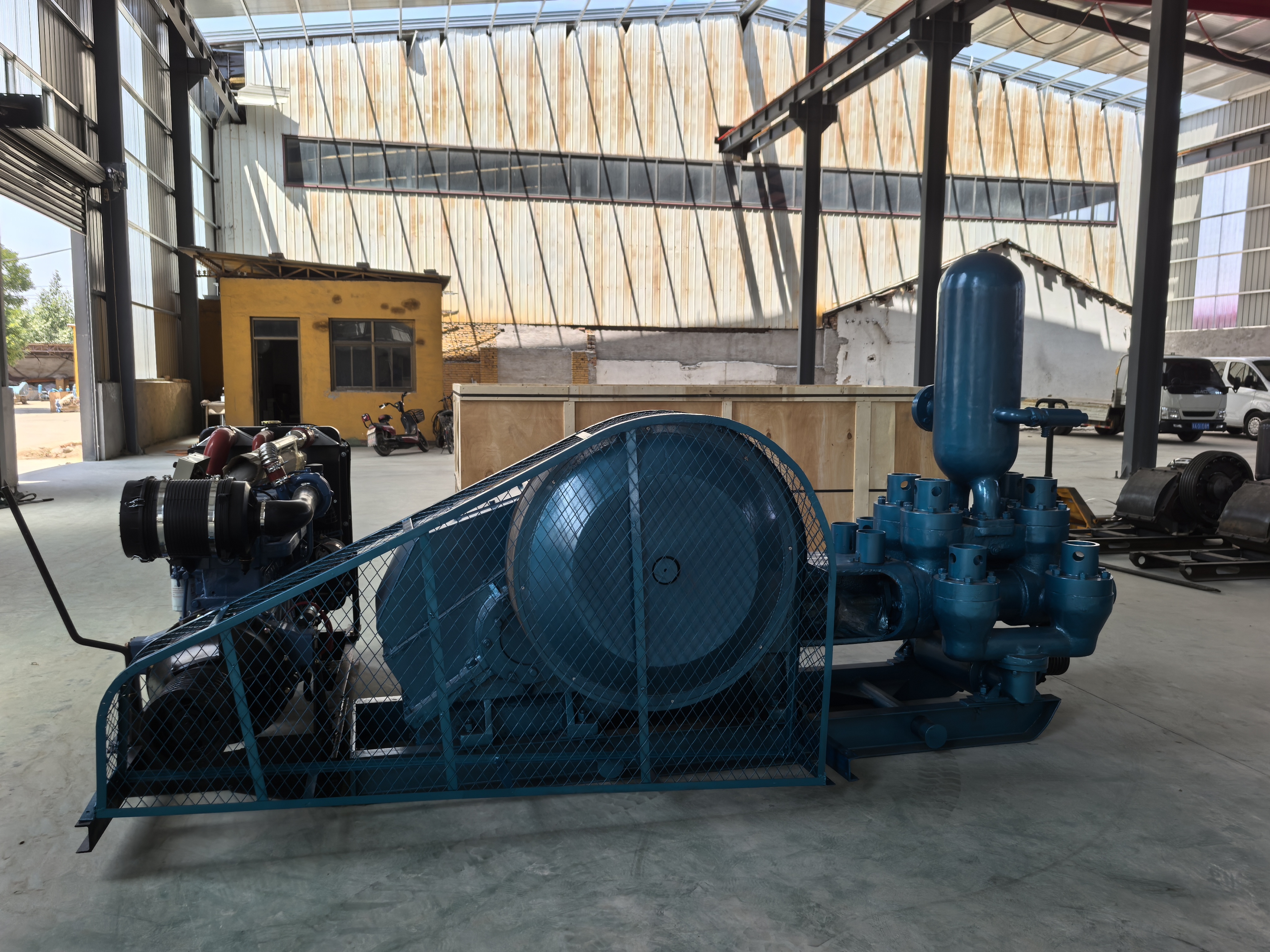

High-Performance Bw850/5 Mud Pump for Borehole Drilling Applications 2
